COOMERA CONNECTOR STAGE 1 NORTH
GNB

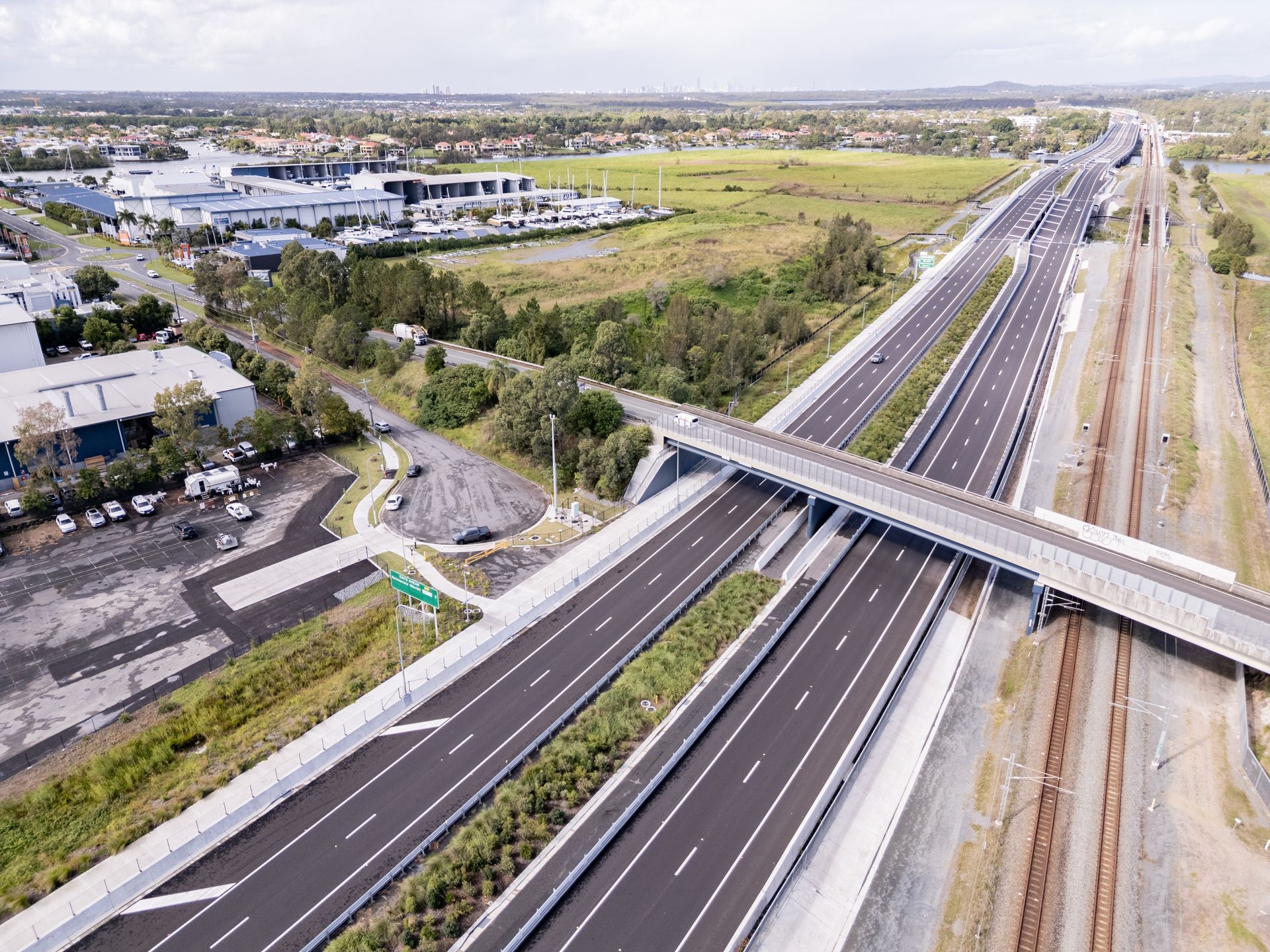

Stage 1 North of the Coomera Connector spans 4 kilometres of major transport infrastructure, incorporating four lanes with future widening provisions, new interchanges at Shipper Drive and Helensvale Road, and an almost one-kilometre bridge over the Coomera River and Saltwater Creek. The project also includes active transport pathways, upgraded road connections and future-proofed bridge structures designed to minimise long-term disruption while supporting continued regional growth.
Sector
ITS / Roads and Traffic
Location
Coomera Goldcoast, QLD
Outcome
ITS Cabinets base fitout
Completed
2025
CLIENT
PROJECT PROCESS
CLIENT BRIEF
MAIN ROADS
Client GNB reached out to TROPAC regarding the Coomera Central project they had recently been awarded. They were looking for a partner that could supply Department of Transport Type Approved Products to meet the required specifications, but also support them in delivering a project that would be risk free by delivering on time and meeting the required demands on the Quality to meet the QLD Government requirements.
PROJECT PROCESS & PROTOTYPES

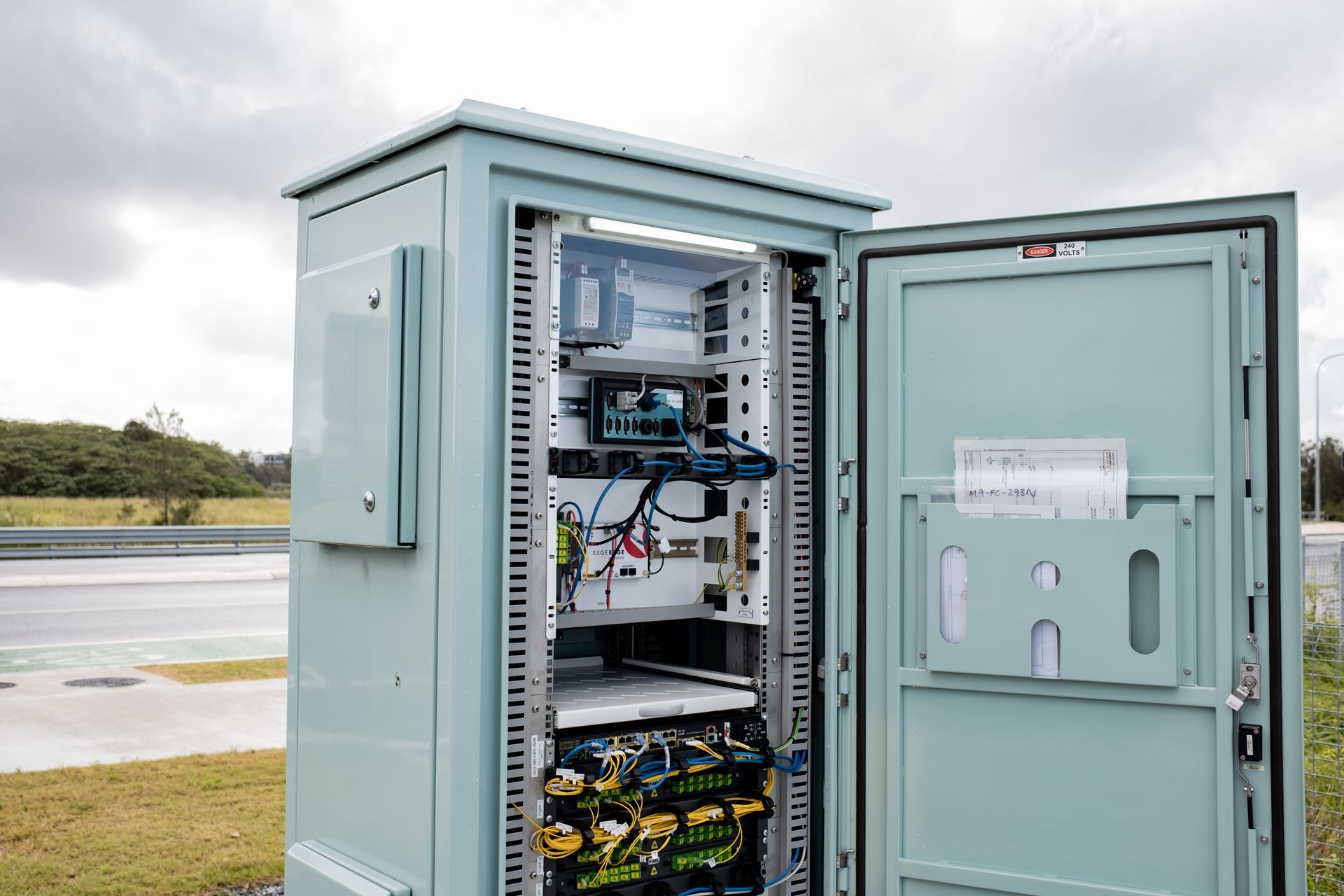

The cabinet assemblies were delivered in accordance with approved plans and wiring diagrams, utilising Queensland Government Type Approved cabinet specifications. As the design was aligned to established standards, a prototype phase was not required, enabling efficient production while maintaining full compliance with regulatory and performance requirements.
PRODUCTS USED
- LOREM IPSUM DOLOR SIT AMET
- LOREM IPSUM DOLOR
- LOREM IPSUM DOLOR SIT CONSECTETUR ADIPISCING
- LOREM IPSUM DOLOR SIT AMET CONSECTETUR
- LOREM IPSUM DOLOR CONSECTETUR ADIPISCING ELIT
- LOREM IPSUM DOLOR SIT AMET
- LOREM IPSUM DOLOR CONSECTETUR
- LOREM IPSUM DOLOR SIT AMET CONSECTETUR
- LOREM IPSUM DOLOR AMET CONSECTETUR
- LOREM IPSUM DOLOR
PRODUCT NAME
PRODUCT NAME
FINAL PROJECT DETAILS
PRODUCTS USED
- 1 X TRO-A18018062-T33-TMR – Double ITS Cabinet - (2000MM HIGH X 1900MM WIDE X 620MM DEEP)
- 12 X TRO-A1809062-T33-TMR - Single ITS Cabinets - (2000MM HIGH X 950MM WIDE X 620MM DEEP)

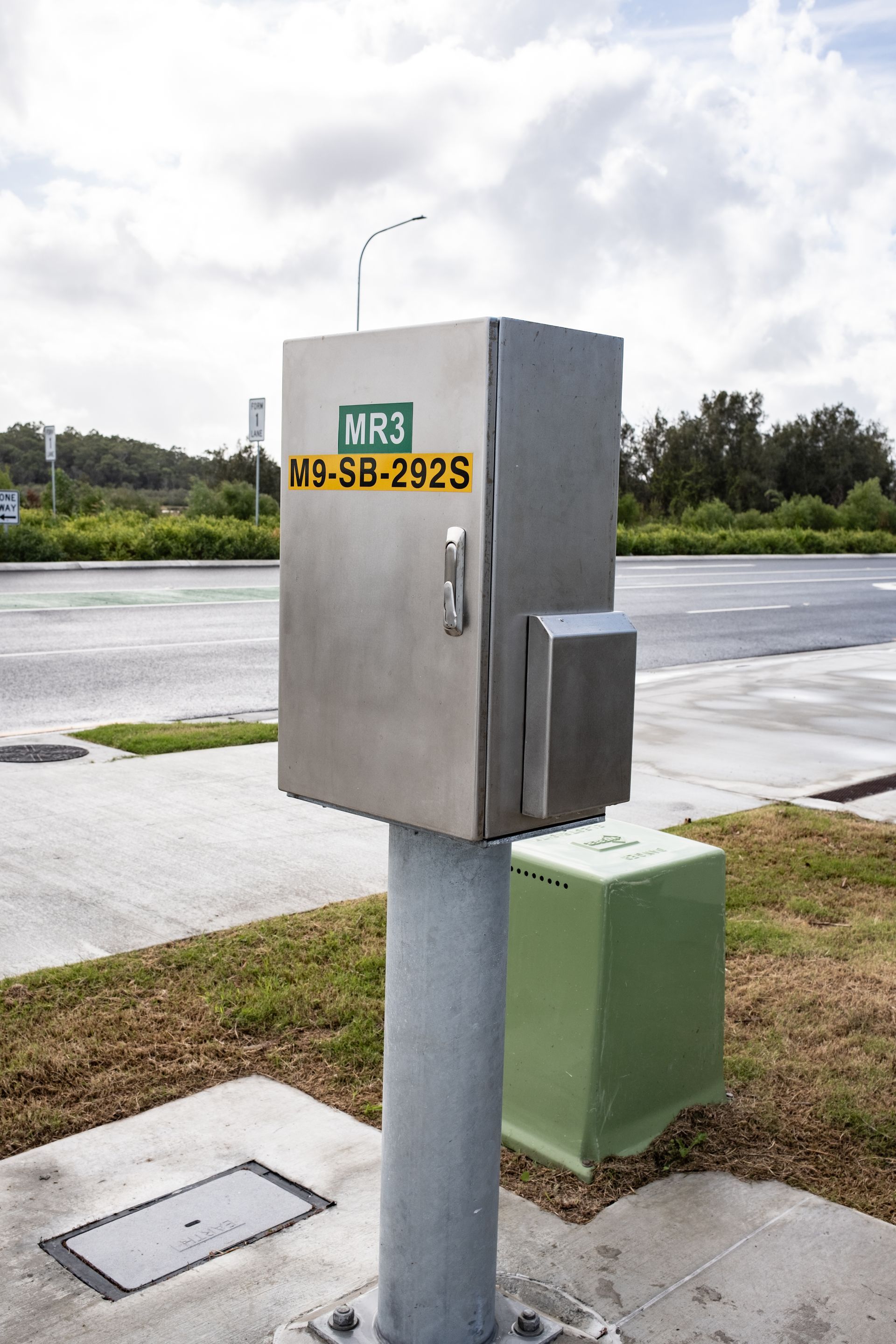

- 12 X TRO-SSFC805032-R3L-SL – Rate 3 Smart Lighting Cabinets - (800MM HIGH X 500MM WIDE X 320MM DEEP)

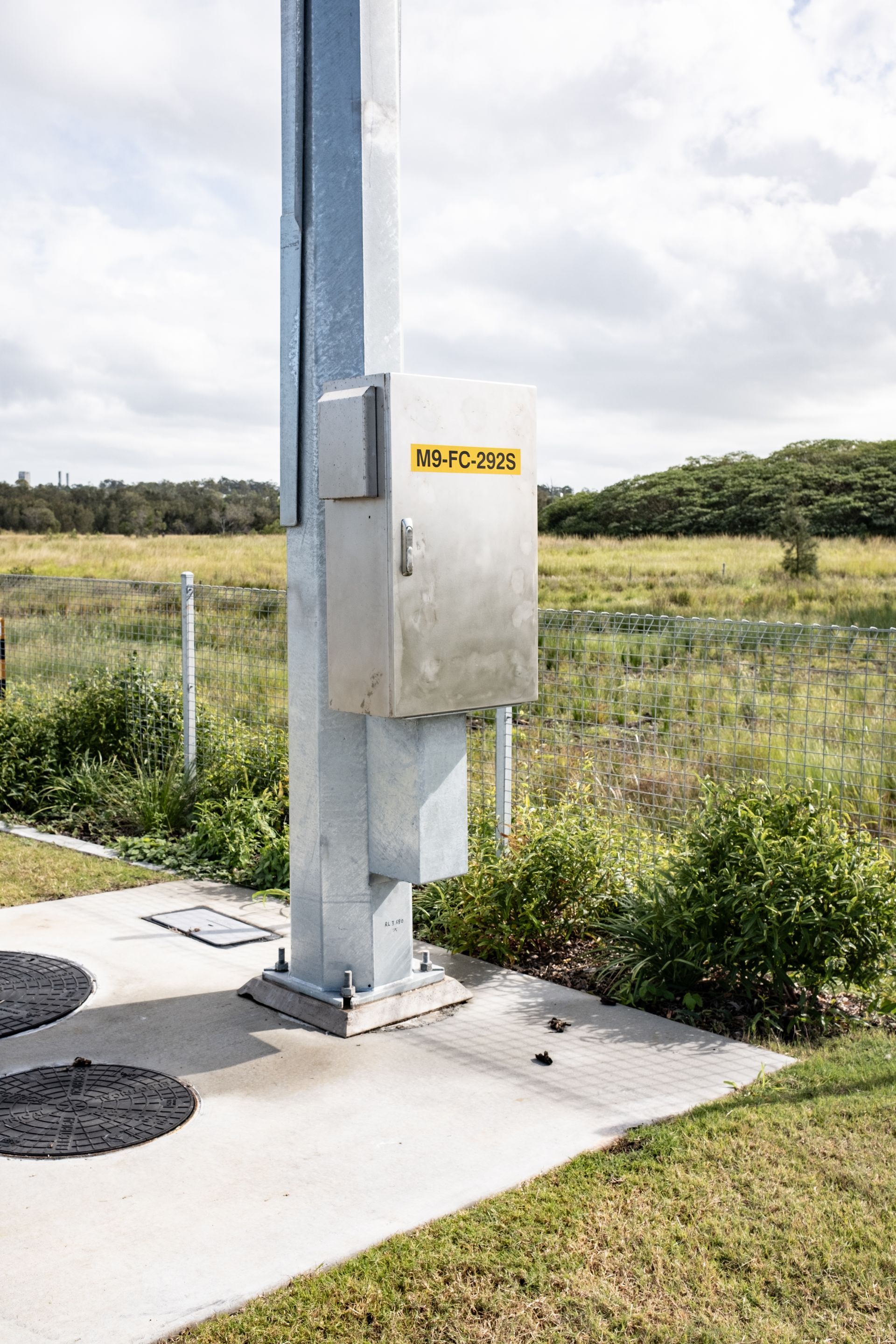

- 18 X TRO-TMR-PEDESTAL – Custom Fabricated Pedestal Post for Rate 3 Cabinets
OUTCOME DIMENSIONS
- TRO-A18018062-T33-TMR (2000mm High x 1900mm Wide x 620mm Deep)
- TRO-A1809062-T33-TMR (2000mm High x 950mm Wide x 620mm Deep)
- TRO-SSFC805032-R3L-SL (800mm High x 500mm Wide x 320mm Deep)
- TRO-TMR-PEDESTAL (900mm High Post for Cabinets)
INSTALL REQUIREMENTS & LOCATIONS
- TROPAC delivered a hybrid assembly solution in line with the standard QLD Government Type Approved fitout. Following Factory Acceptance Testing (FAT), the assemblies were supplied to GNB for final integration, allowing their team to complete the remaining fitout requirements onsite.

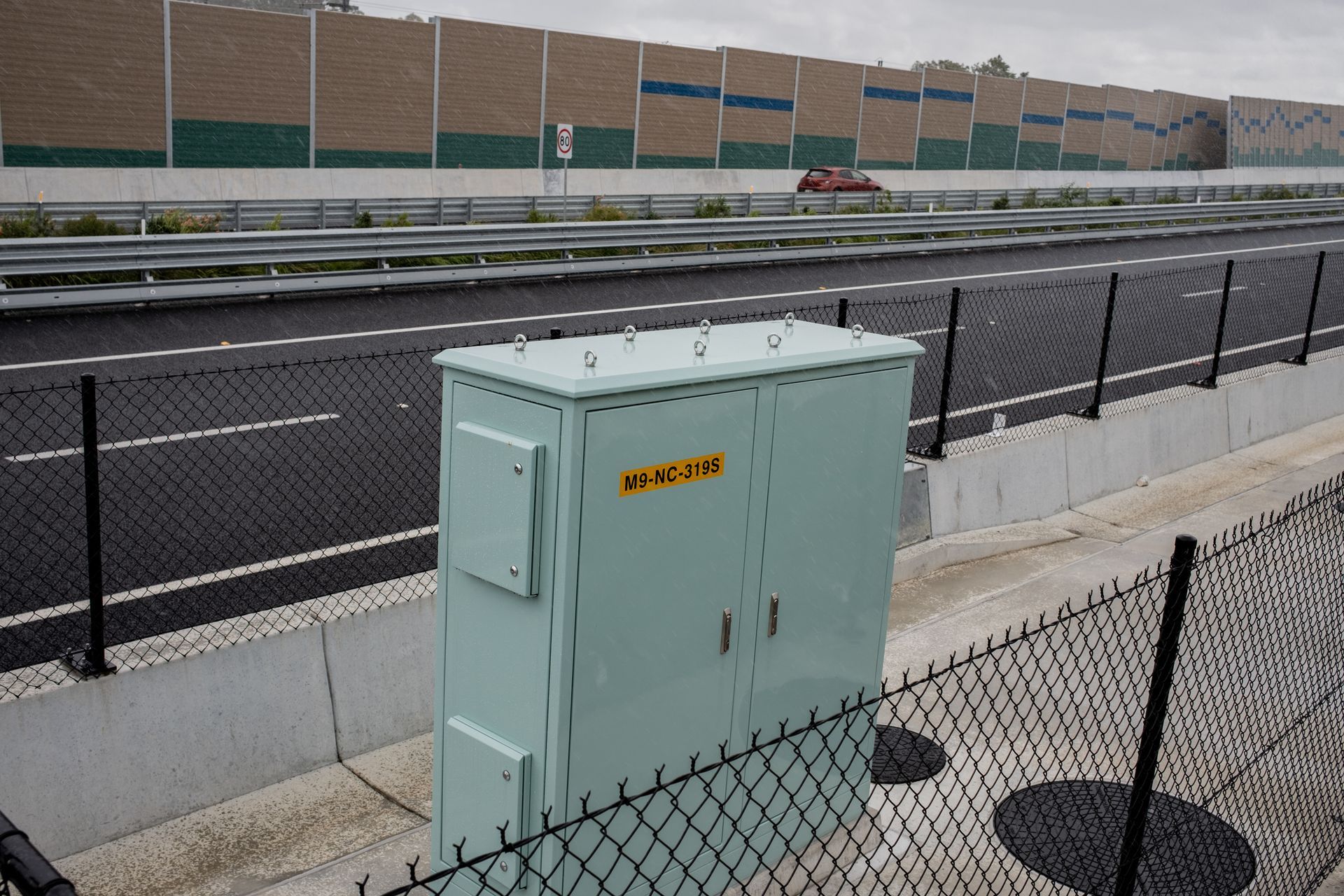

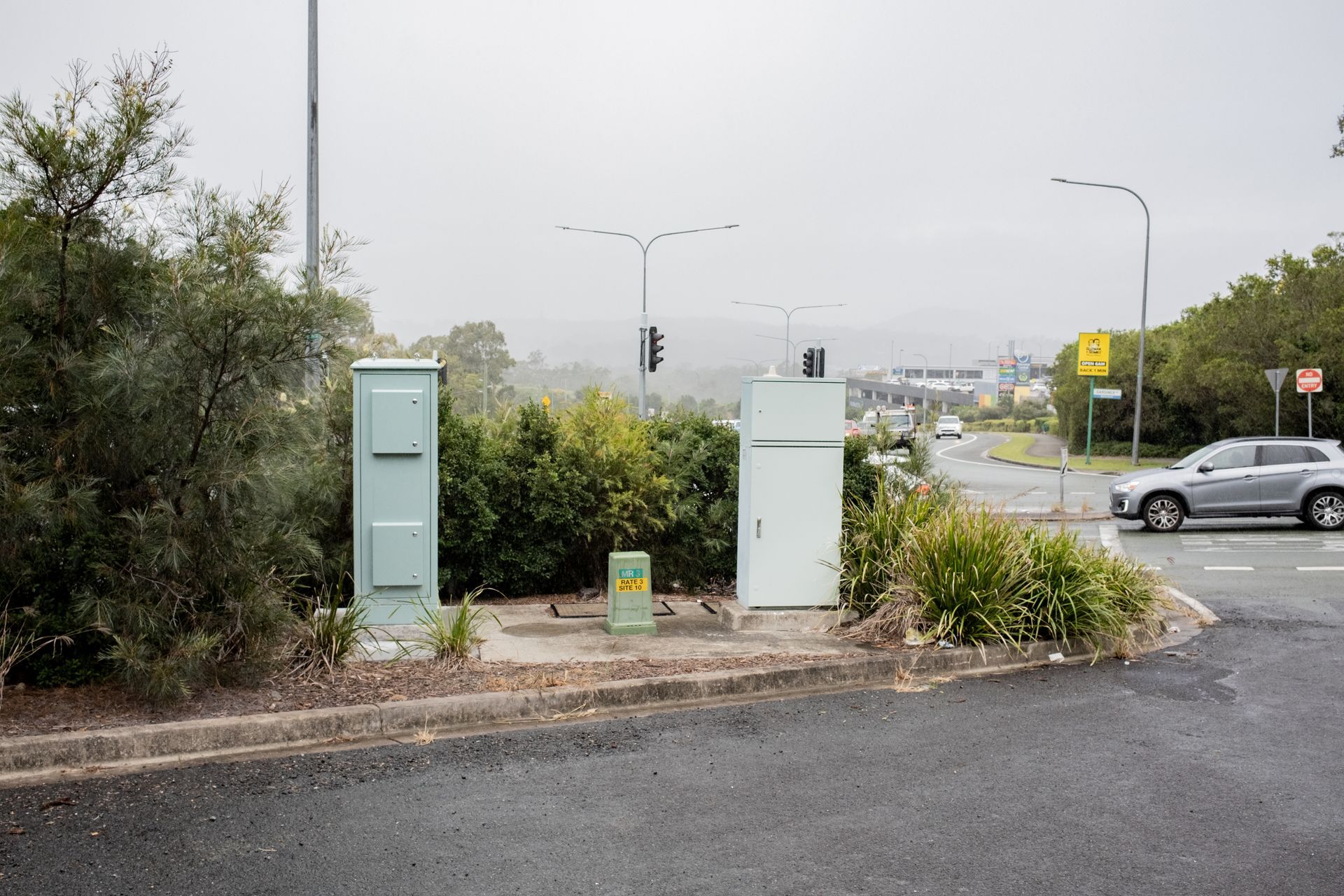

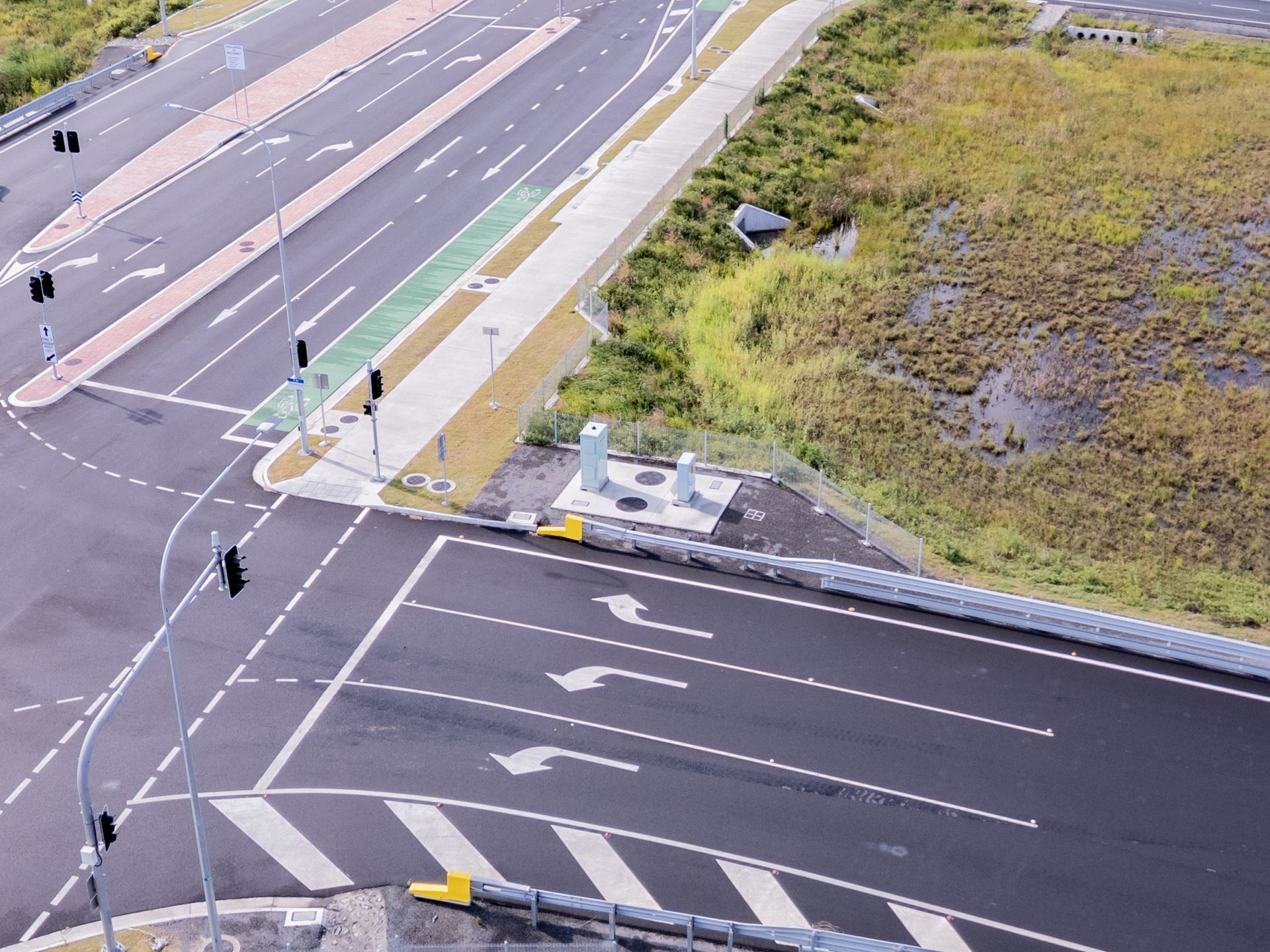

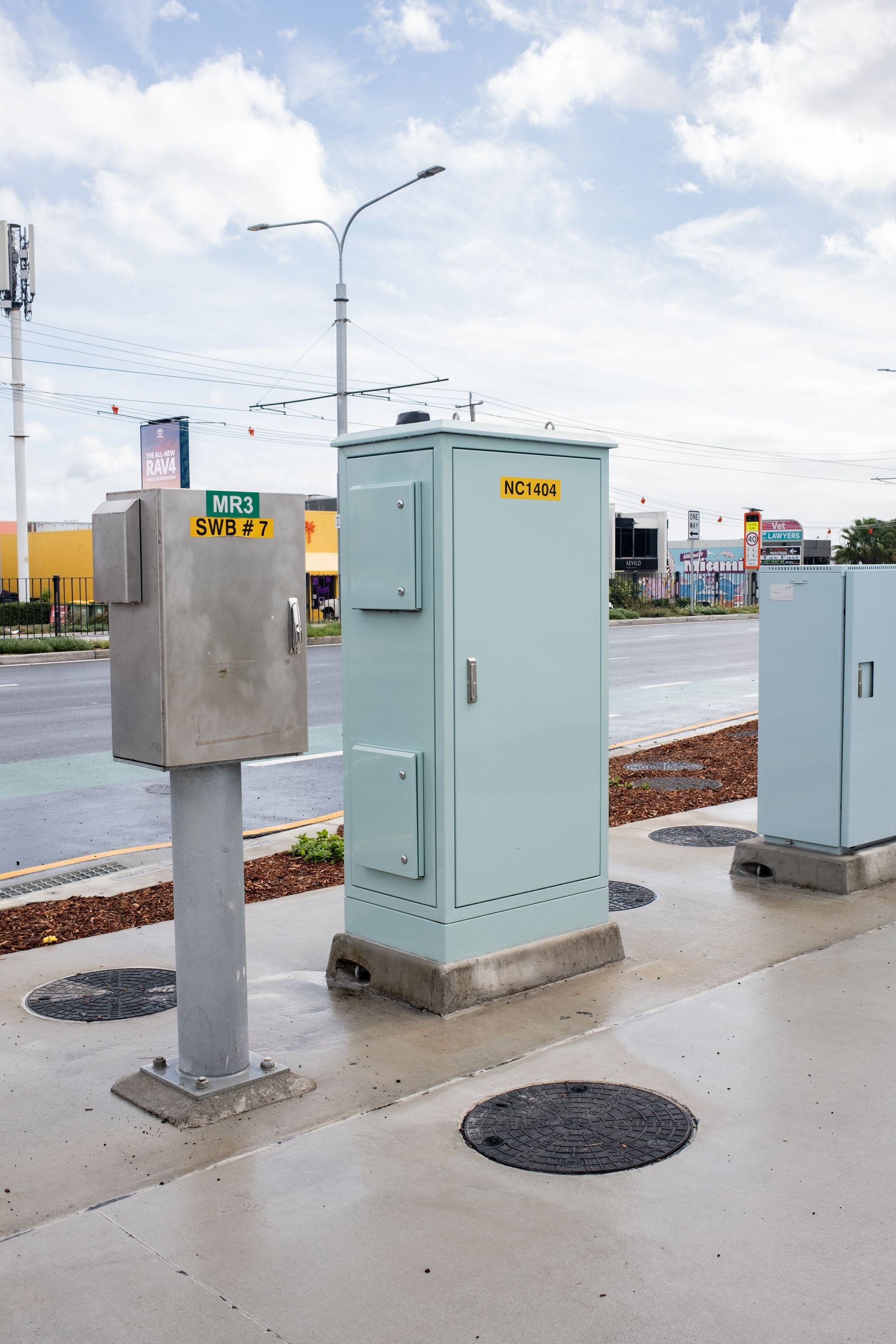

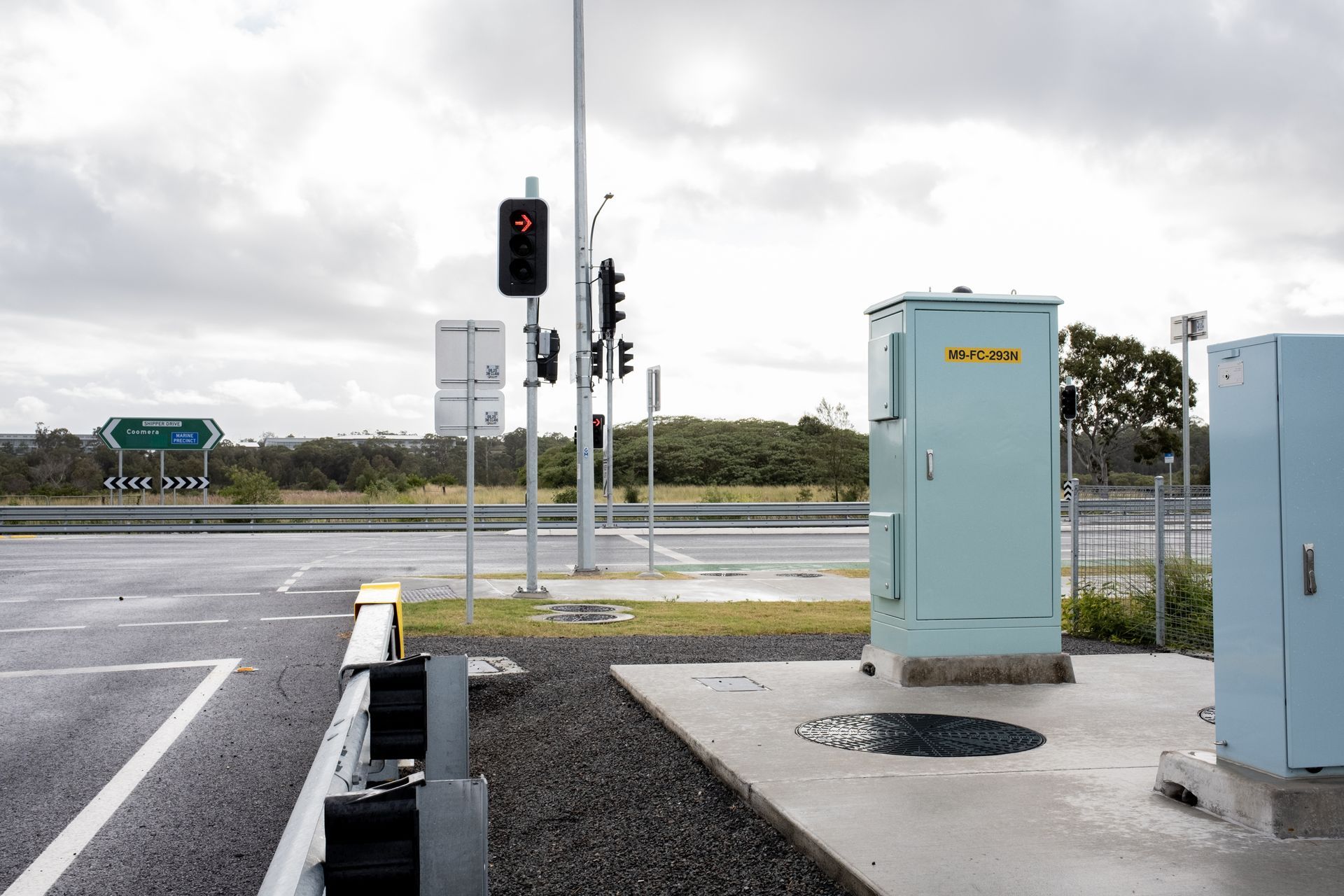

- Coomera Connector Stage 1 North: The cabinets are installed across a 4km stretch: spanning road, bridges and bikeways from Shipper Drive to Helensvale Road.
